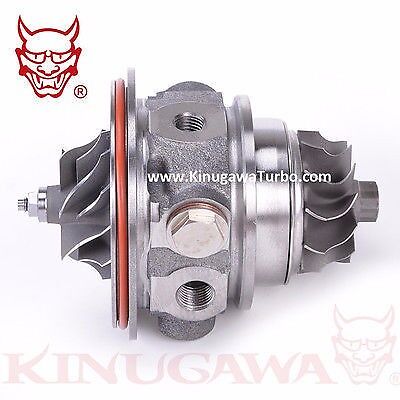

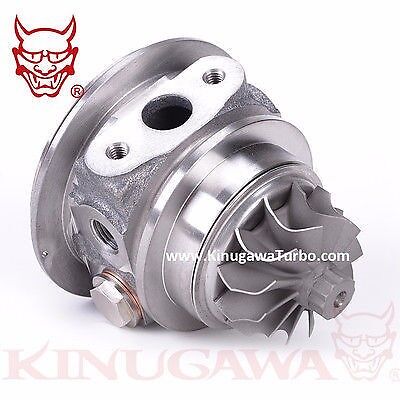

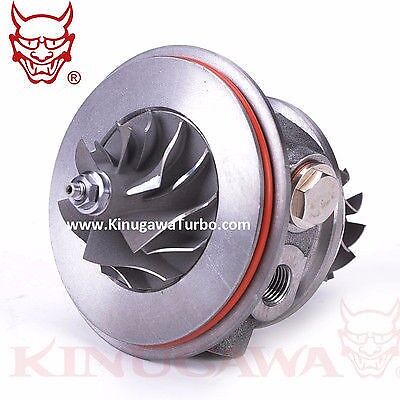

Kinugawa Turbo Cartridge CHRA FORMitsubishi 4D56T TD04-10T Delica L200 L300 L400

Application
 - 4D56T Pajero, Delica, Canter, L200, L300, L400 TD04-10T Turbo.
-Replace 49177-08240 and 49377-08400 CHRA.
- Heat shield : - 5mm Depth.

Wheel Dimension
-Compressor Wheel : 35.5 / 49 mm (Inducer / Exducer Dia.)
- Turbine Wheel : 47.1 / 40 mm (Inducer / Exducer Dia.)

Quantity
- 1 pcs

Thrust Bearing Kit
Journal Bearing System

Cooling System
Oil & Water cooled system

Extra parts Included
Everything you see in the 1st picture is what you will get

Note
Complete CHRA is balanced on Schenck MBRS 110 the best balance machine in the world to make sure it works well.
