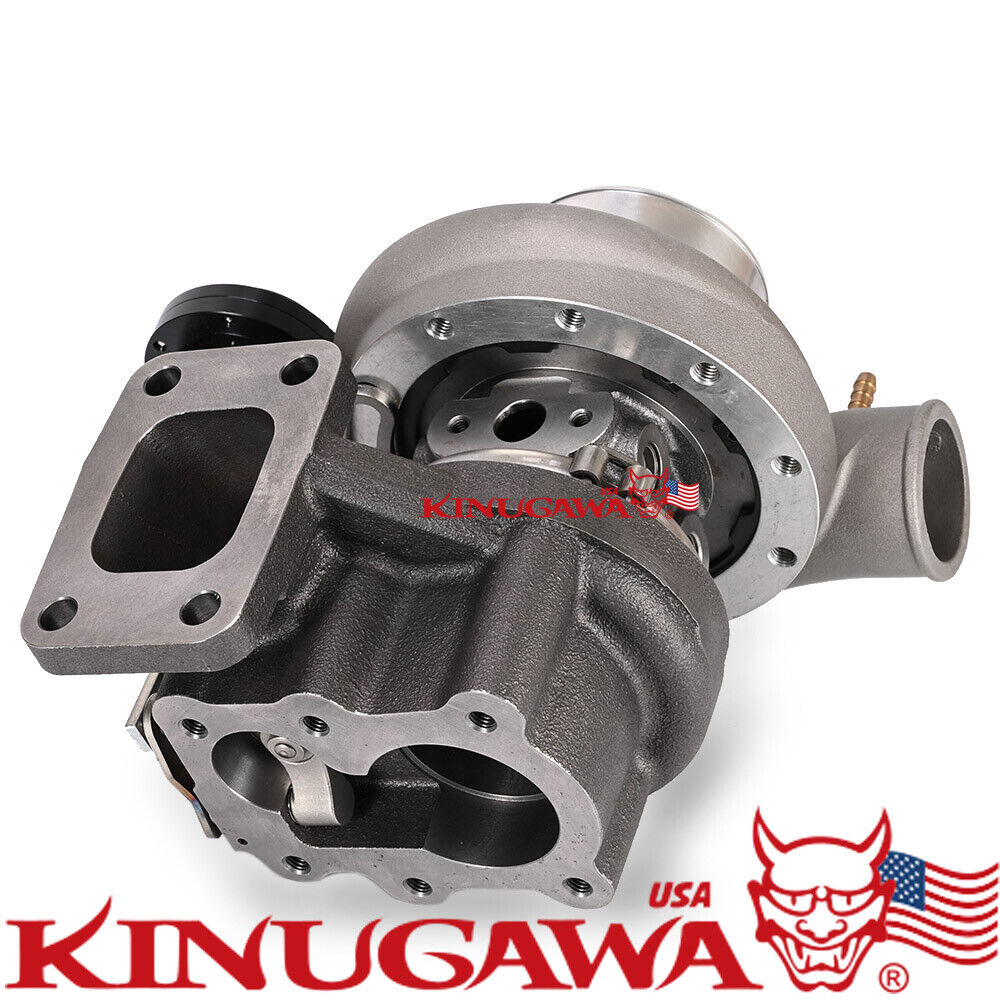

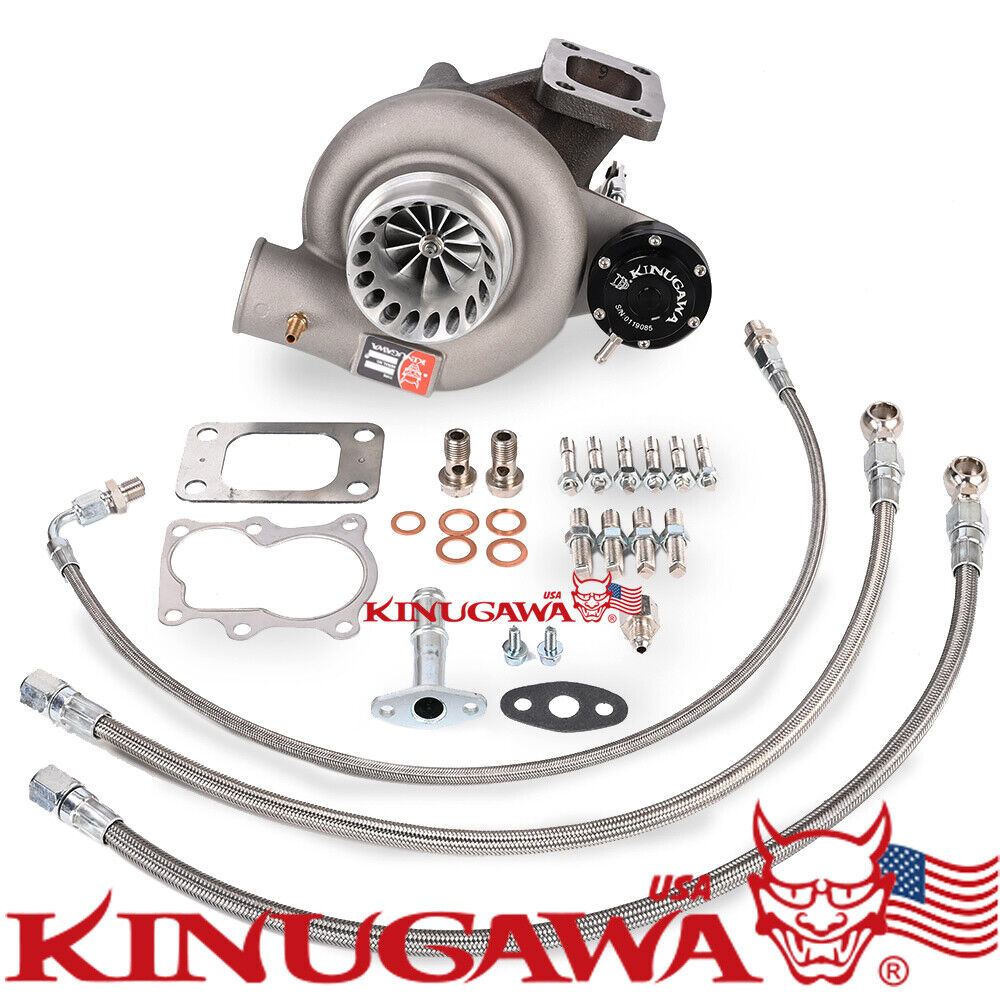

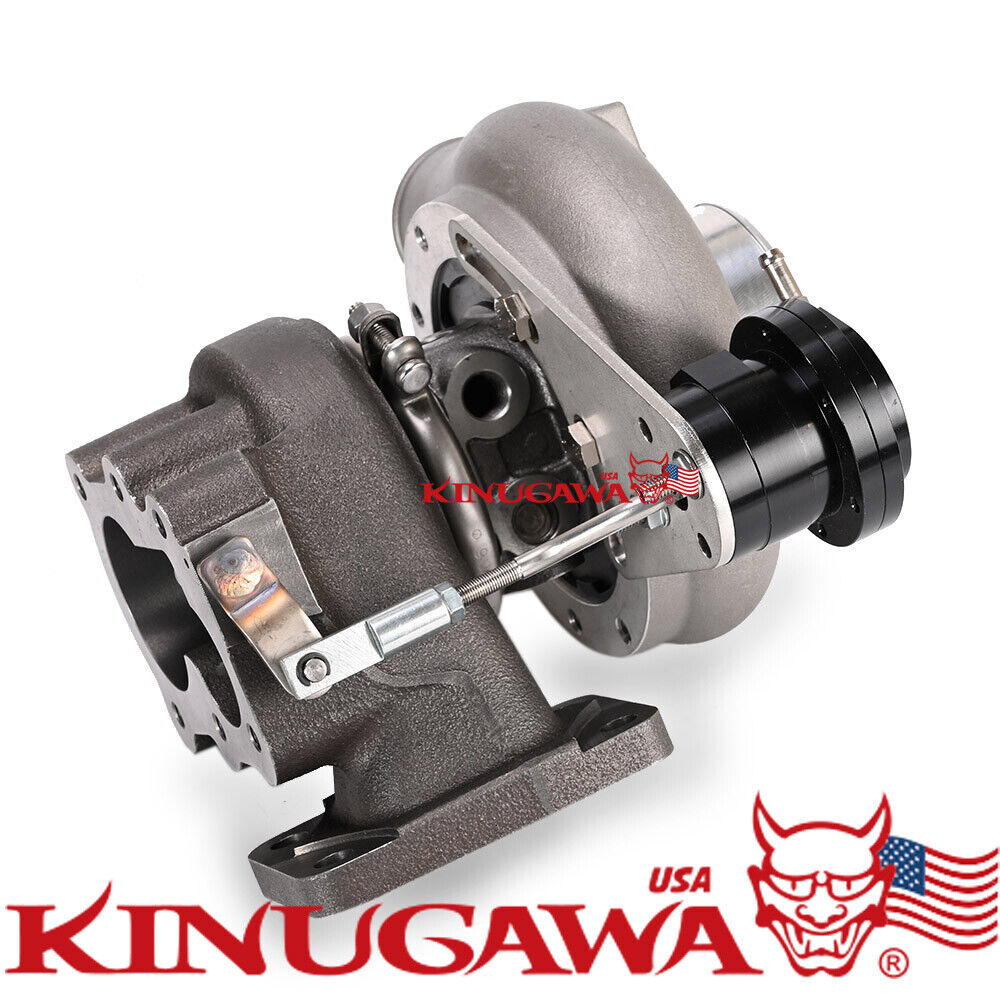

Kinugawa Turbo FOR 3" TD05H-20G Nissan TD42 Patrol w/Stock T3 6 Bolts Outlet 6cm

Application
Nissan Safari / Patrol GQ TD42 Diesel

Compressor Wheel
52.5 / 68 mm (20G GTX Billet Wheel)
　
Turbine Wheel
49.2 / 56 mm (TD05H / 9 blade )
　
Compressor Housing
- A/R 60 - Compressor inlet : 76mm / 3”
- compressor outlet : 51mm / 2”

Turbine Housing
- 6cm / AR 42
- T3 inlet flange
- 6 Bolts stock outlet
- internal gate

Bearing System
Journal bearing / Performance thrust bearing kit with larger thrust ring and flinger

Cooling System
Oil & water cooled system ( Oil cooled is available as well)

Actuator Pressure
1.0 Bar / 14.7 Psi

Note
Actuator position can be rotated 360 degrees easily

Made by
Kinugawa Turbo

Warranty
ONE YEAR
