Product Info
|
|
Item Name
|

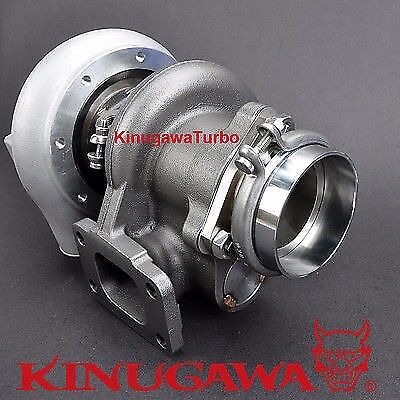

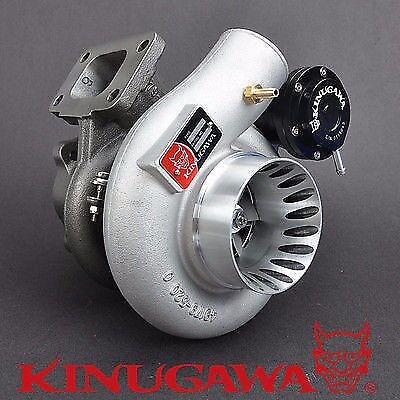

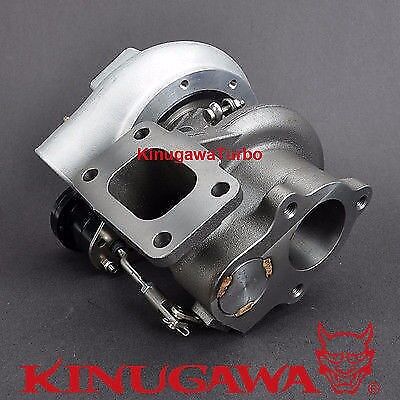

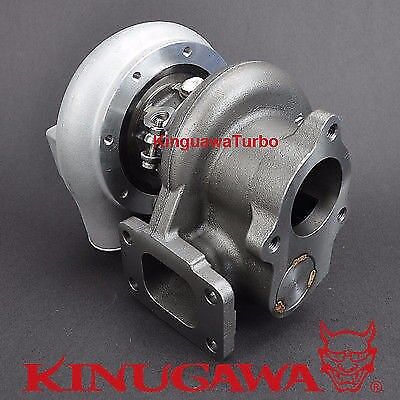

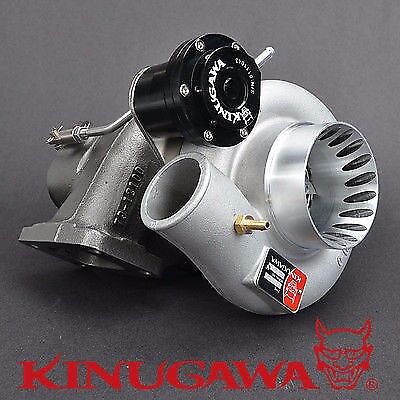

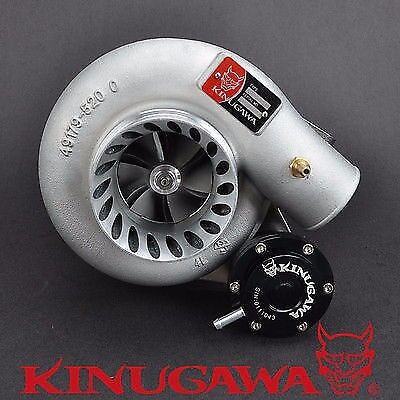

Kinugawa 3” Anti Surge TD05H Turbocharger with Garrett 60-1 Compressor Wheel and T3 10cm Internal Gate V-band Turbine Housing
|
|
Item No.
|
301-02001-278
|
|
Application
|
- Universal Type
- 2000~3000cc
|
|
Wheel Spec.
|
- Comp. wheel: 60/76 mm (Garrett 60-1 Cast Wheel)
- Turbine wheel: 49.2/56 mm (TD05H / 12 blade )
|
|
Compressor Housing
Turbine Housing
|
- A/R 60
- Compressor Inlet : 80.5mm / 3.25”
- Compressor Outlet : 51mm / 2”
- 10cm / A/R .73
- T3 Inlet Flange
- Internal Gate
|
|
Bearing System
|
Journal Bearing / Kamak Performance Thrust Bearing Kit
|
|
Cooling System
|
Oil & Water cooled system
|
|
Max HP
Boost Limit
Suggested Limit
|
- 300~450 HP
- 2.8 Bar (Based on Performance bearing kit with larger thrust bearing )
- 1.5 bar / 22 Psi
|
|
Kit includes
|

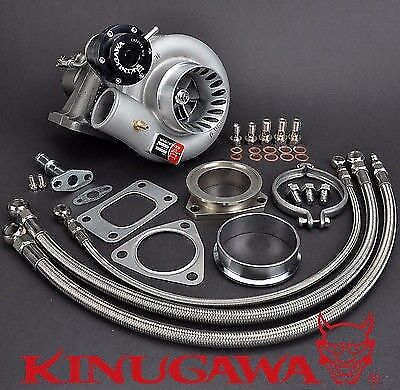

(Everything shown on picture included)
- 1.0 Bar / 15 psi - 0.3bar, 0.5Bar, 0.8 Bar, 1 Bar, 1.2 Bar, 1.5 bar actuators are available,
please contact us if you need it.
- Actuator position can be 360 Deg moved easily.
|
|
