Product Info
|
|
Item Name
|

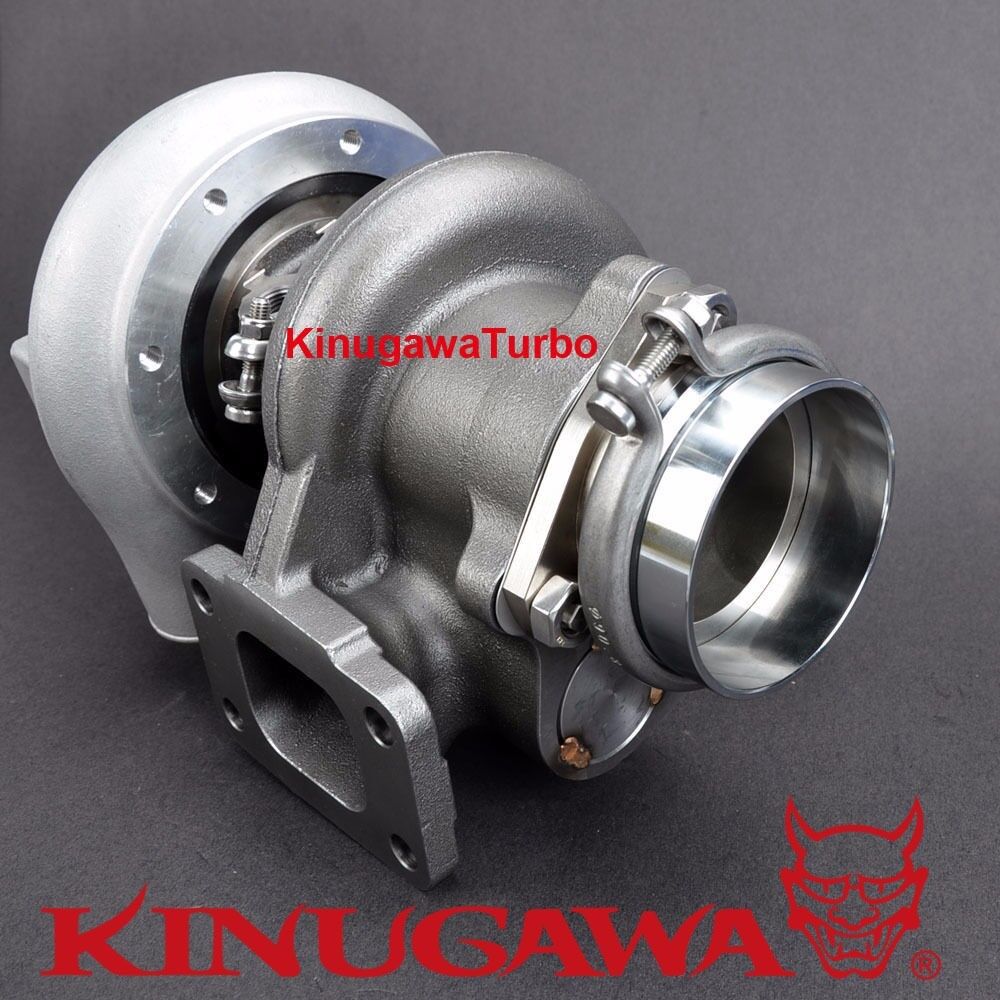

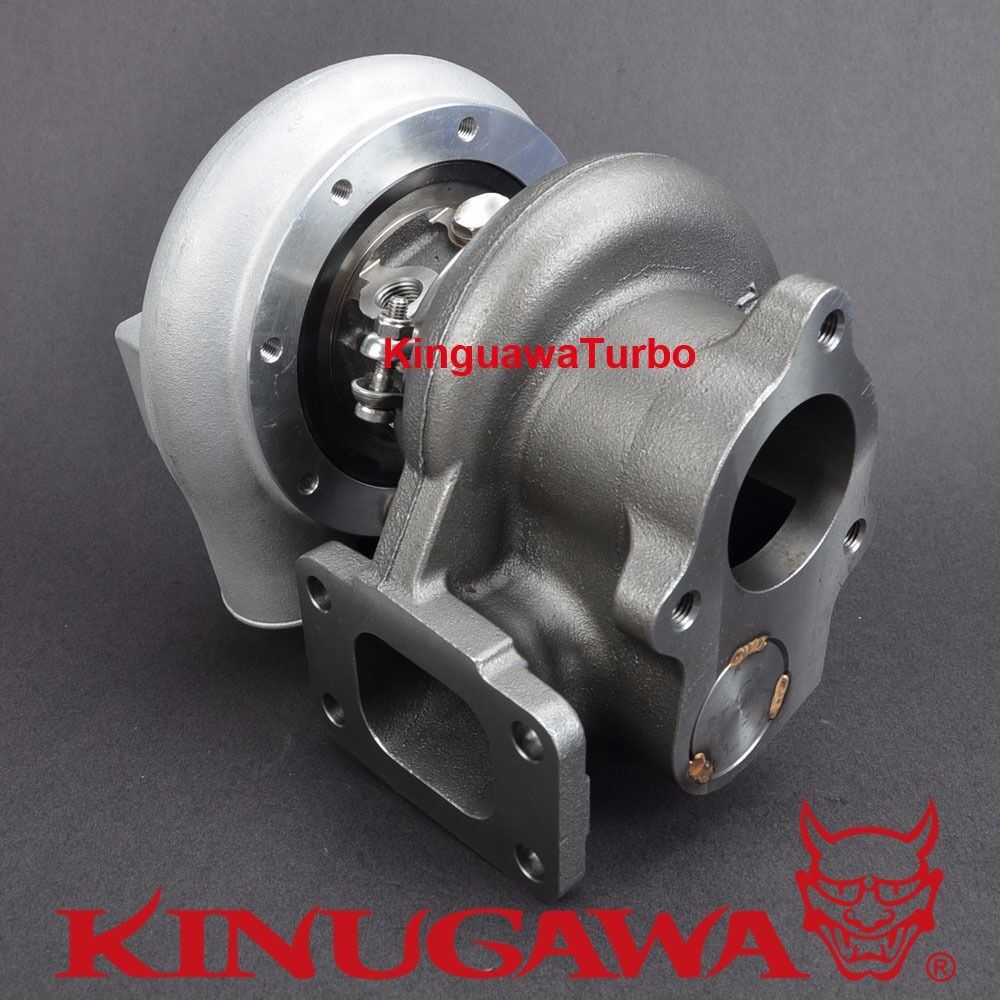

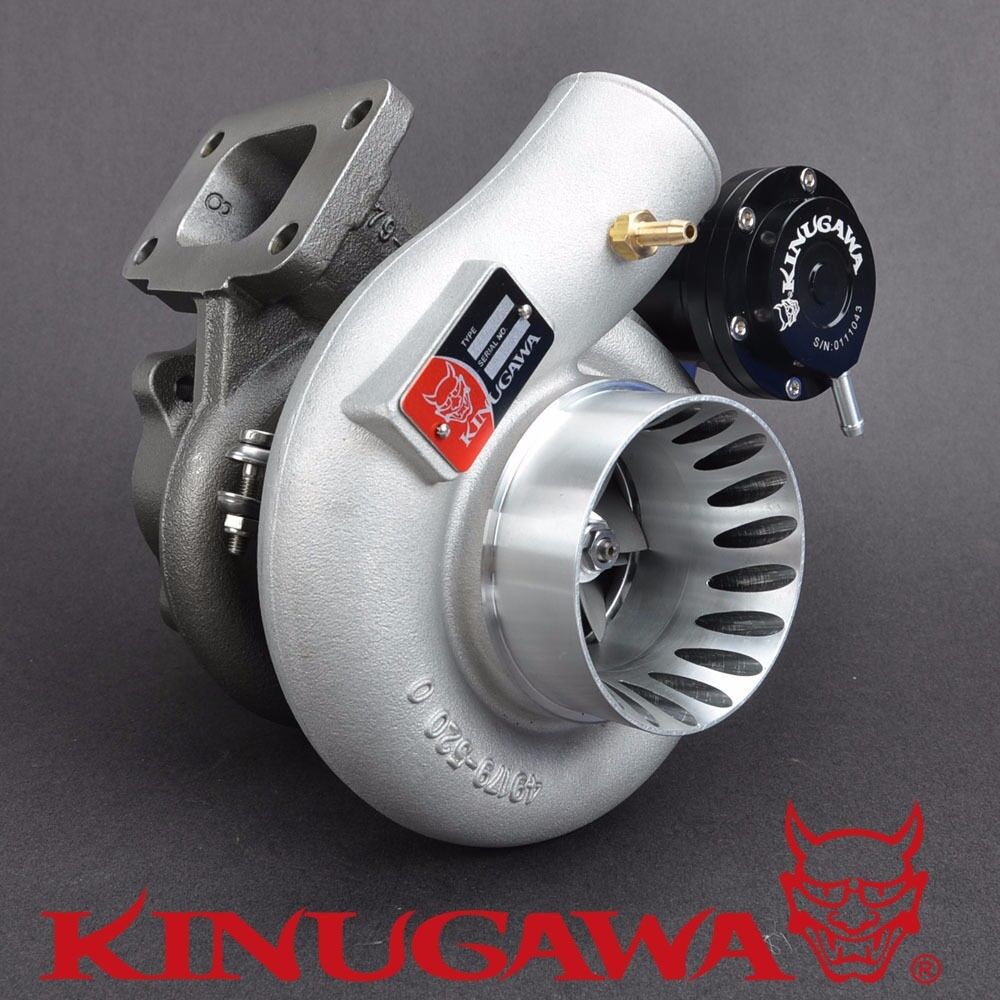

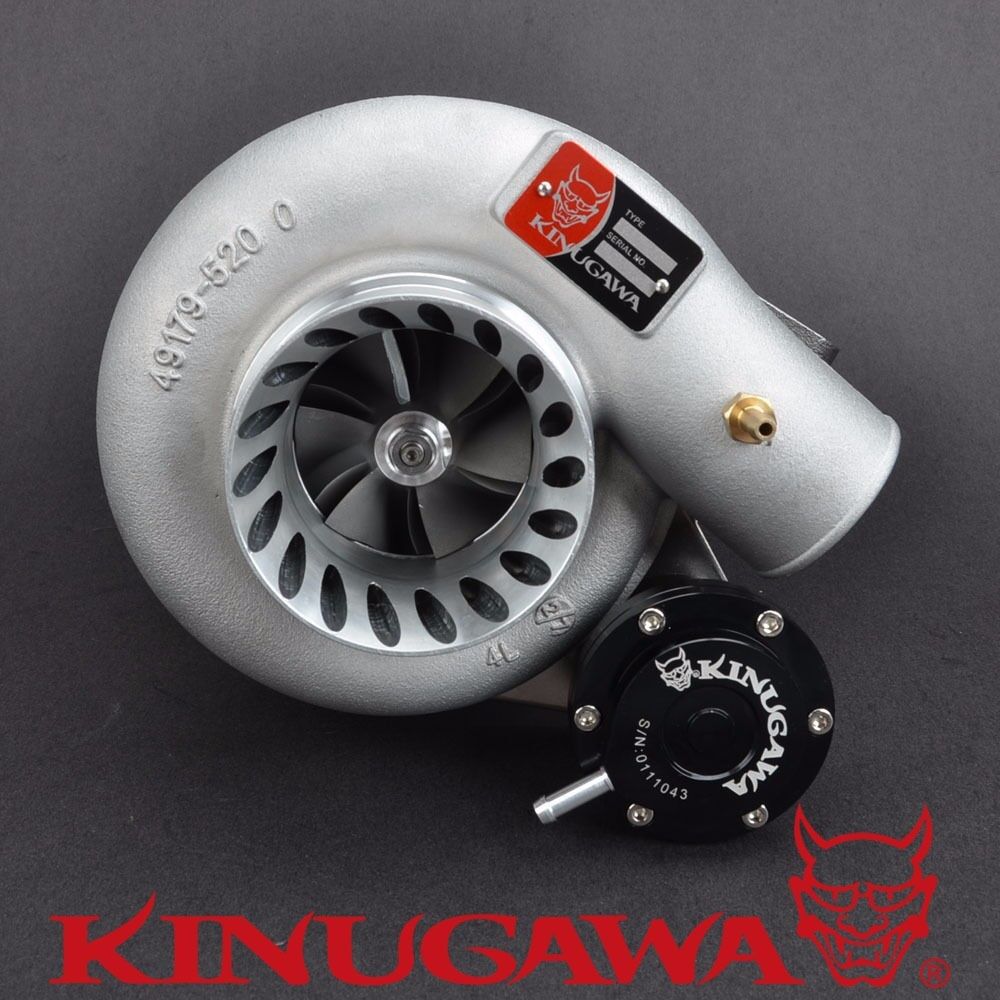

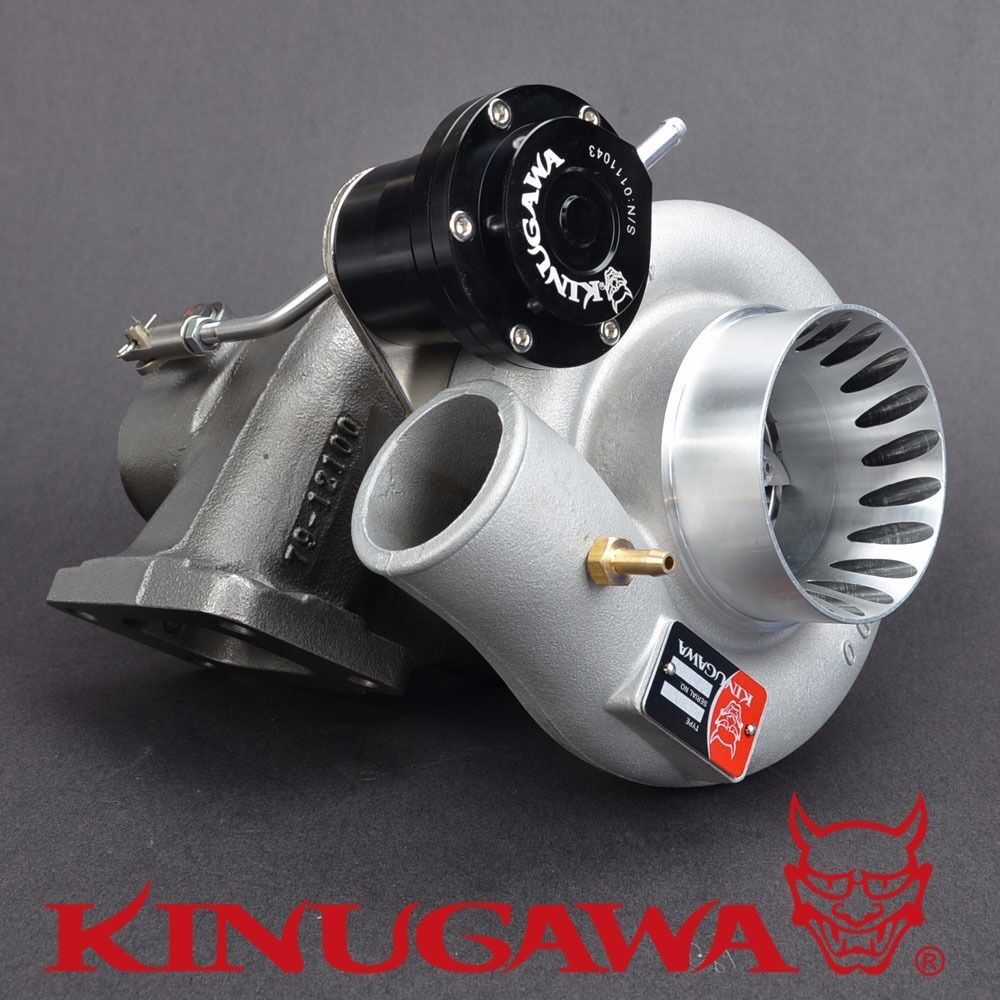

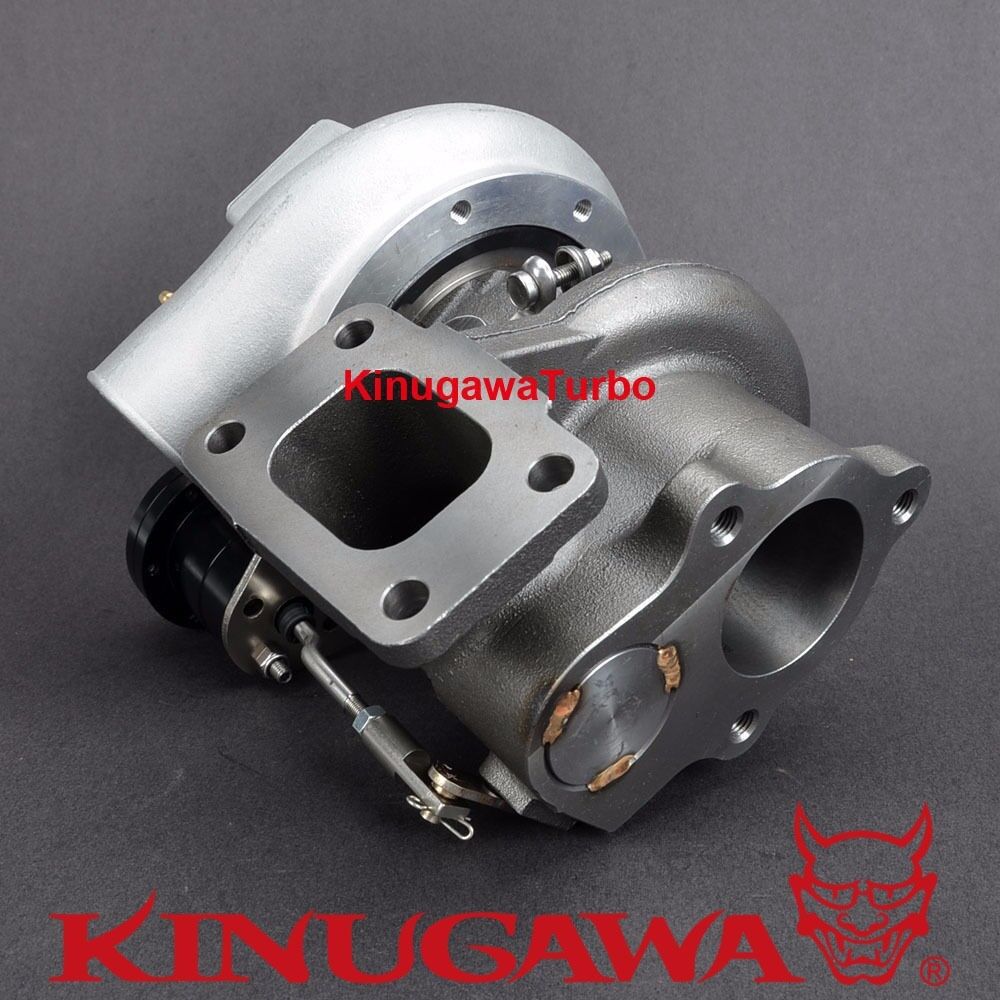

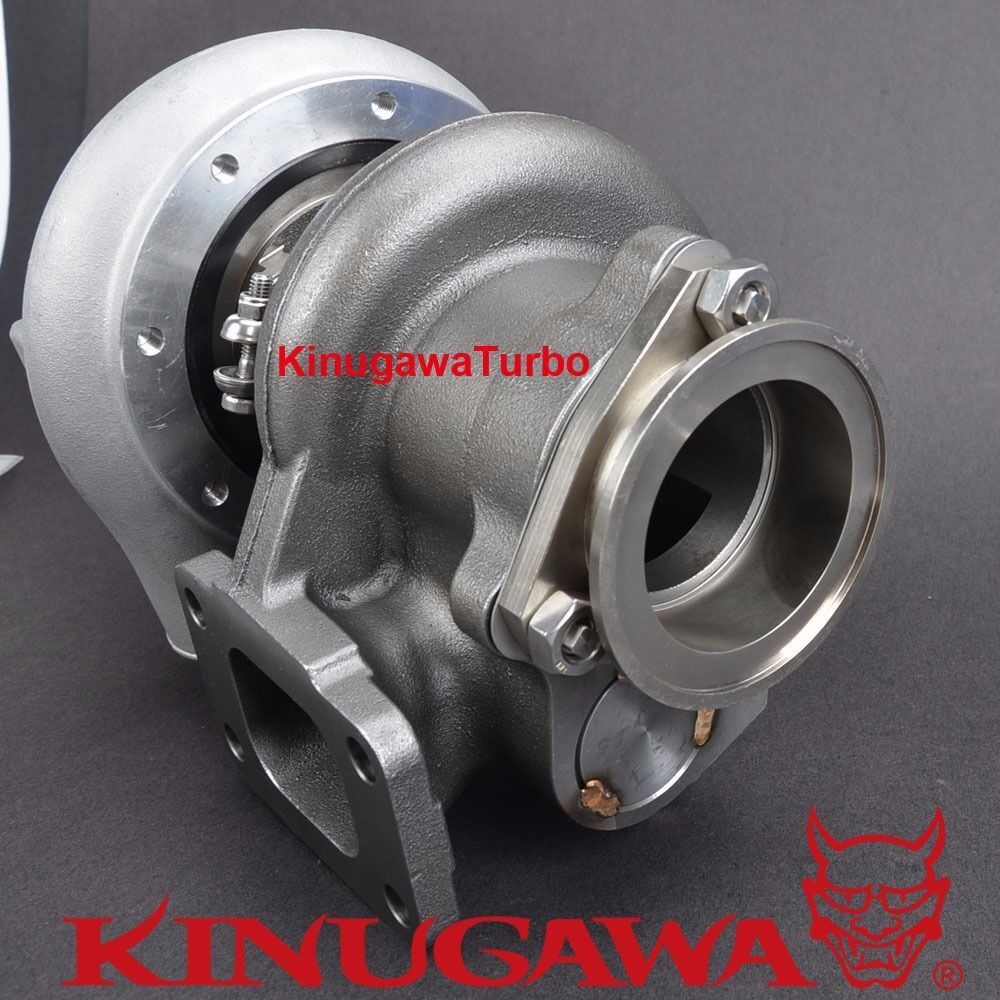

Kinugawa 3” Anti Surge TD06H-25G w/ T3 8cm V-Band Internal Gate Turbine Housing.
|
|
Item No.
|
301-02001-199
|
|
Application
|
- Universal Type
- 2000~3000cc
|
|
Wheel Spec.
|
- Compressor wheel: 60.46 / 77.96 mm
(Inducer/Exducer Dia)
- Turbine wheel: 58.8 / 67.2 mm
(TD06H4 / 11 Blades of Inconel Wheel)
|
|
Compressor Housing
Turbine Housing
|
- A/R 60
- Compressor Inlet : 76mm / 3”
- Compressor Outlet : 51mm / 2”
- 8cm / AR 57
- T3 Inlet Flange
- Internal Gate
|
|
Bearing System
|
Journal Bearing / Kamak Performance Thrust Bearing Kit
|
|
Cooling System
|
Oil & Water cooled system
|
|
Max HP
Boost Limit
Suggested Limit
|
- 300~450 HP
- 2.8 Bar (Based on Performance bearing kit with larger thrust bearing )
- 1.5 bar / 22 Psi
|
|

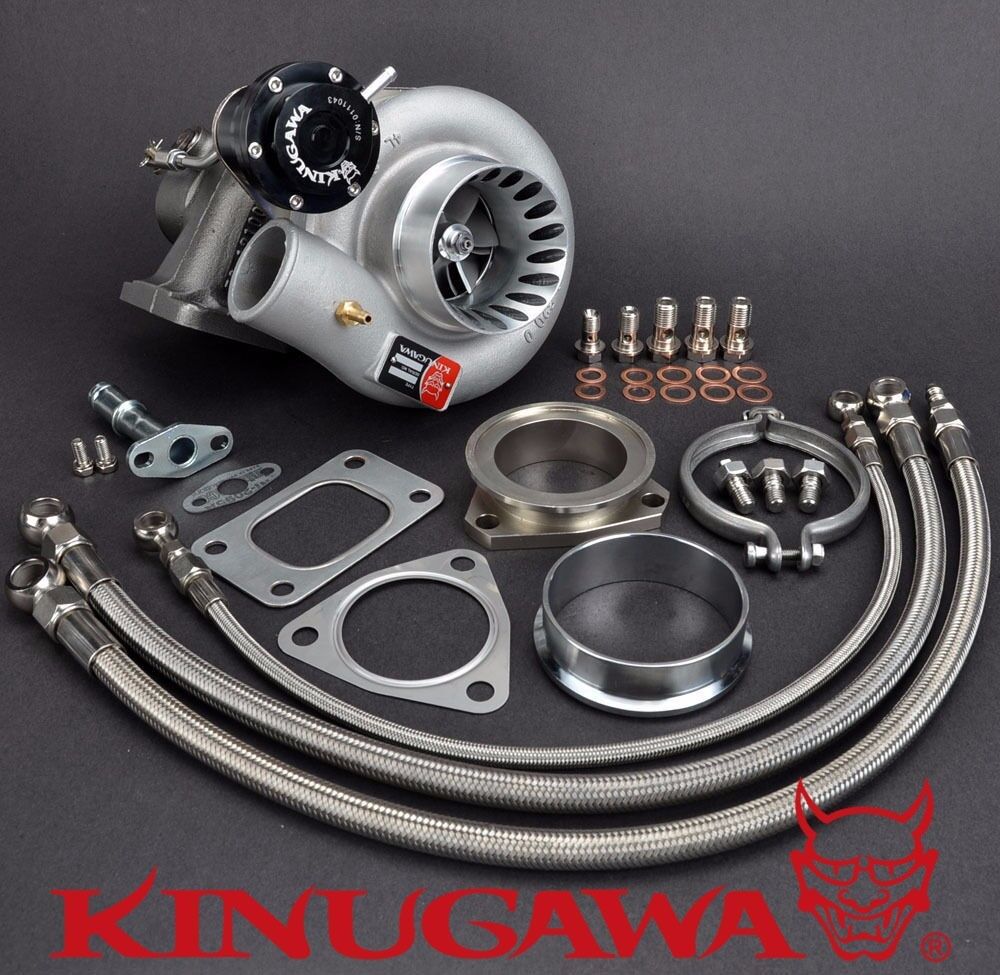

Kit includes
|
1 x Oil feed line kit ( 104cm Braided Line )
1 x Oil drain pipe kit
2 x Coolant line Kit
2 x Turbine Gasket ( Inlet + Outlet )
1 x V-Band Adapter
Everything shown on picture is included.
- 1.0 Bar / 15 psi - 0.3bar, 0.5Bar, 0.8 Bar, 1 Bar, 1.2 Bar, 1.5 bar actuators are available,
please contact us if you need it.
- Actuator position can be 360 Deg moved easily.
|
|
Made by
Notes
|
Kinugawa Turbo
ONE YEAR WARRANTY
|
|
|
|
