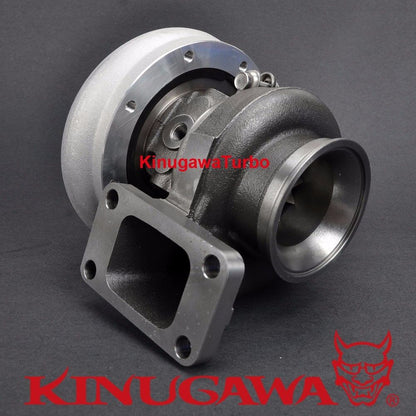

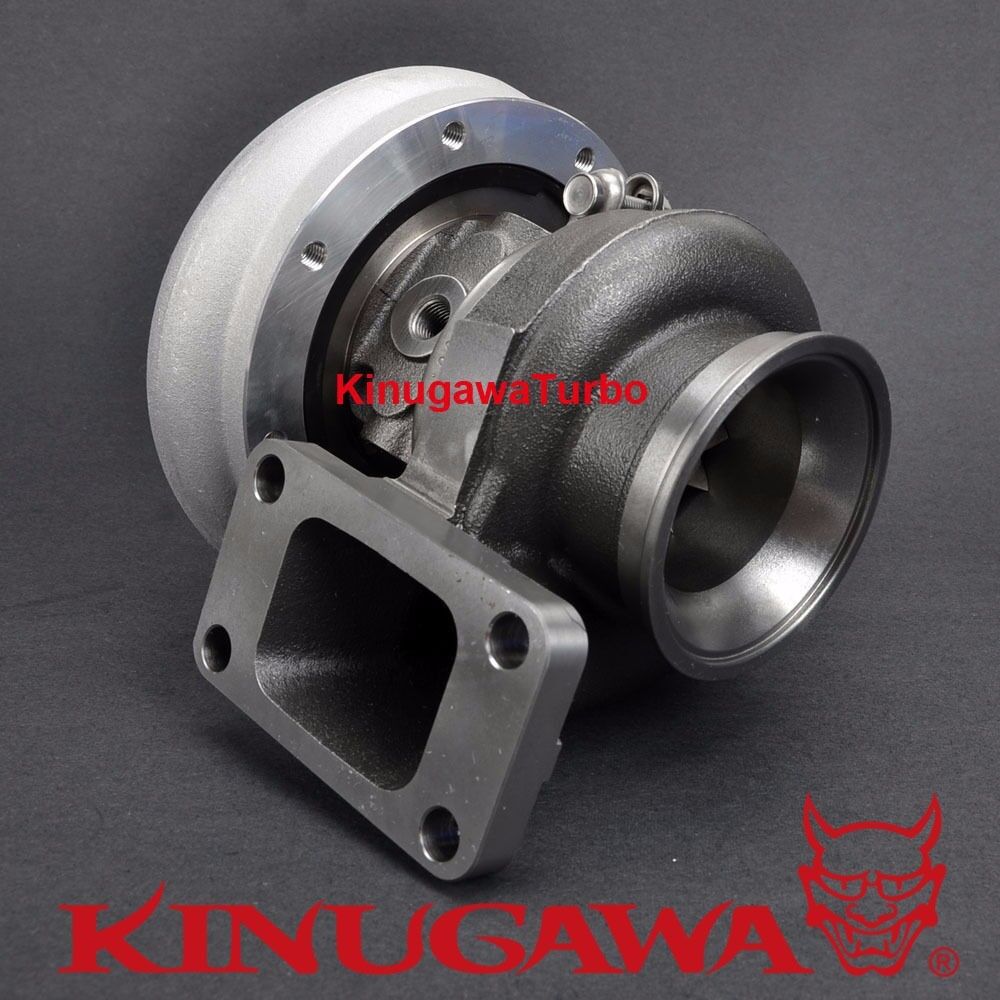

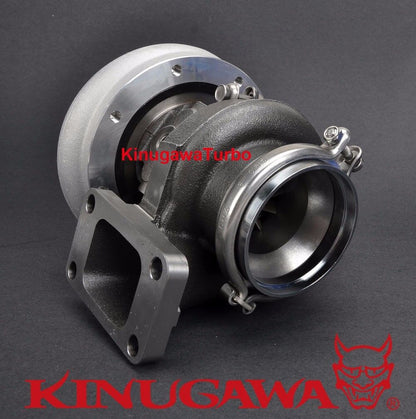

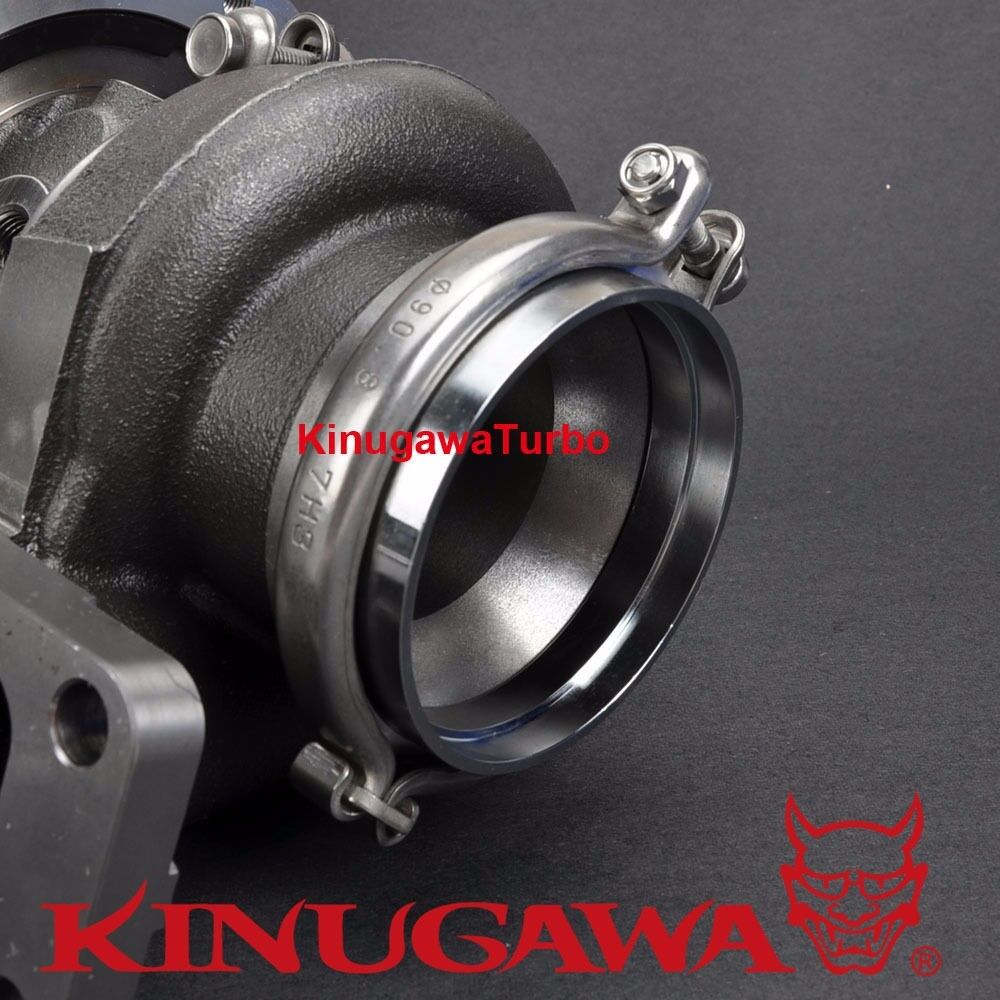

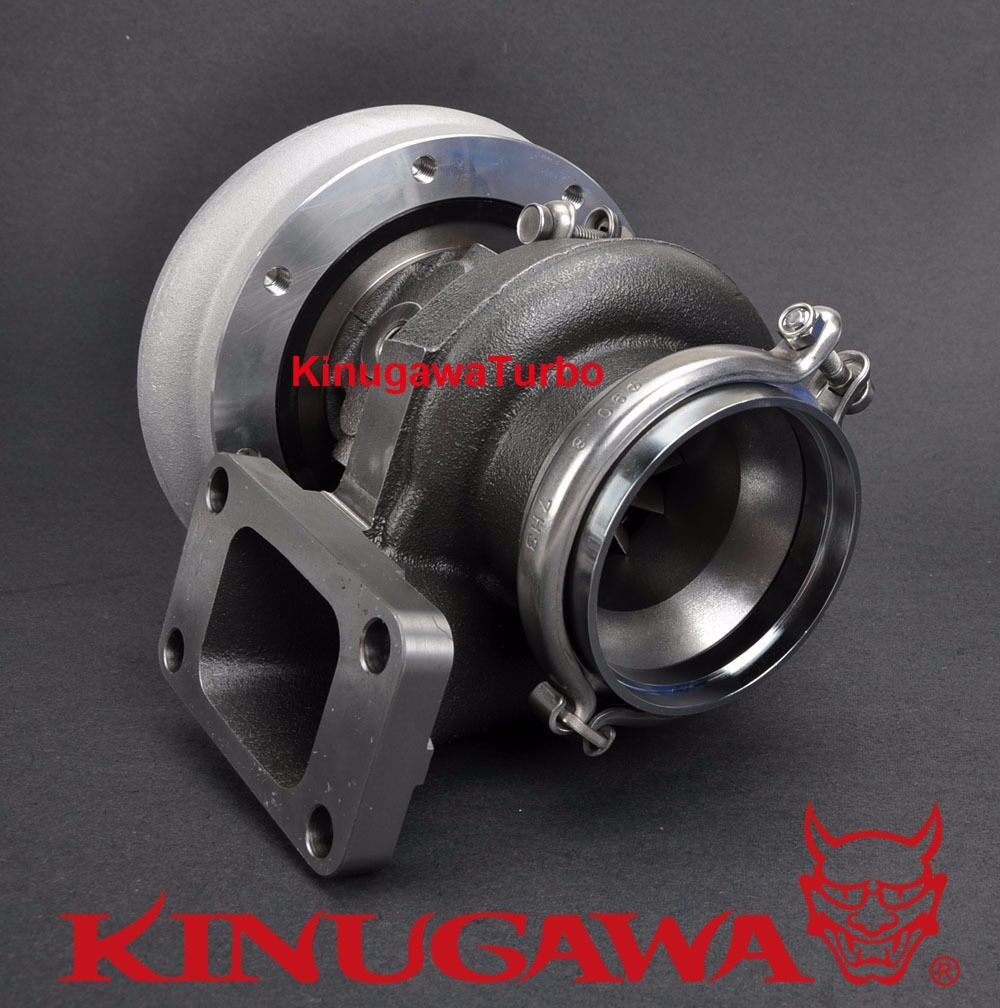

Kinugawa Turbocharger 3" Non Anti Surge TD05H-20G w/ T3 / 8cm / V-Band Housing

Application
Universal Type
1800~2500cc

Wheel Spec.
Compressor wheel: 50.3 / 68 mm (20G Wheel)
Turbine wheel: 56 / 49.2 mm (TD05H 12 Blade Inconel Wheel)

Compressor Housing
A/R .60 / 3” Inlet / 2” Outlet Non Anti-Surge Cover

Turbine Housing
8cm / A/R.64 T3 Flanged External Gated turbine housing

Bearing System
Journal Bearing

Cooling System
Oil and Water-Cooled

Max HP
300~450HP

Boost Limit
2.8 Bar

Suggested Limit
1.5 bar

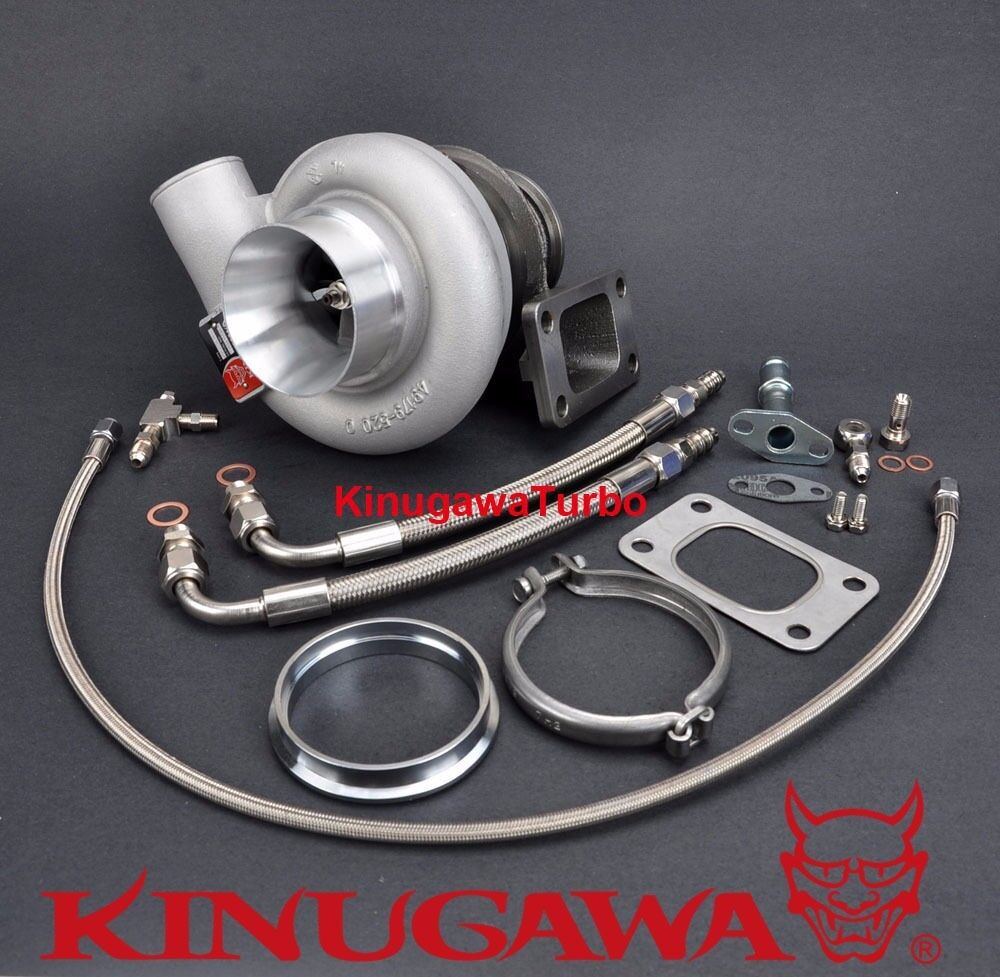

Kit includes
(Everything shown on picture included)
