Repair Kit for SAAB 9.3 900 9000 GarrettTB25 / 87~91 Mercedes 190D 240D 250D

Repair Kit for SAAB 9.3 900 9000 GarrettTB25 / 87~91 Mercedes 190D 240D 250D

Regular price $74.90 USD
Regular price Sale price $74.90 USD
Sale Sold out
Shipping calculated at checkout.




Product Info:





Item Name



Garrett T2 / T25 / T28 / TB02 / TB25 / TB28 Turbo Rebuild Kit

( 360 Deg. Upgrade Thrust Bearing Kit / Dynamic Seal Type )



Item No.



1100-711-100/ 411-03076-001

Application

 - Garrett T2 / T25 / T28 / TB02 / TB25 / TB28 ( Replace 709143-0001 Kit)



- Garrett TB25 / 452162-0001, TB25 452162-0007, TB2557 452047-0001, TB2557 452047-0002.


for Chrysler 2.2L TURBO II New Yorker T3


for 93~01 Nissan TERRANO II TD27 TB25



Model

Year

Engine

HP

CC

Model

Part Number

O.E.M. Part No.

9.3

1999

B204

190

2.0/4

TB2569

452068-0002

9185372

9.3

1999

B204

190

2.0/4

TB2569

452068-0004

9185372

9.3

2000

B204

190

2.0/4

TB2569

452068-0003

9198318

900

1994

B204

150

2.0/4

TB2569

452068-0001

9146010

9000

1994

B204



2.0/4

TB2559

452083-0001

9146051

9000 16V

1989

B202E



2.0/4

TB2529

465181-0001

911930

9000 16V

1990

B202F



2.0/4

TB2529

465181-0002

911932

9000 16V

1990

B234L

175

2.3/4

TB2531

465183-0004

787209

9000 16V

1990

B234L

185

2.3/4

TB2531

465183-0003

787208

9000 16V

1990

B234L

200

2.3/4

TB2531

465183-0002

911707

9000 16V

1990

B234L

200

2.3/4

TB2531

465183-0005

911634

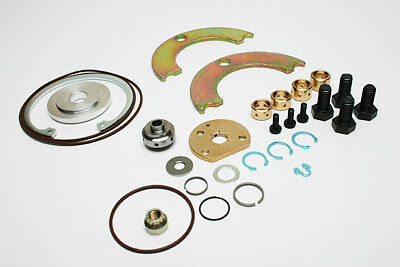

Kit Detail



2 x Journal Bearing (Short / STD / 7.67mm)



2 x Journal Bearing (Long / STD / 9.37mm)



3 x Socket Head / T/Brg Screw (Encapsulated T-Torx)

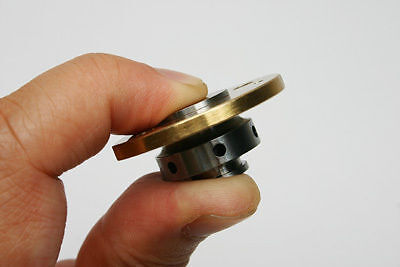

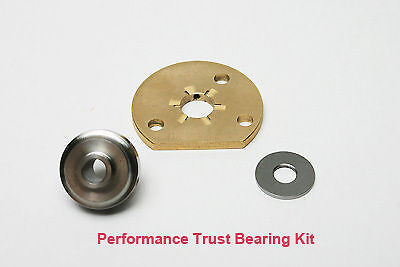

1 x Thrust Bearing ( 360 degree Thrust Bearing)



1 x Upgrade Thrust collar (360 degree)



1 x Thrust Washer ( 360 Degree)



4 x Bolt (Bearing housing to Turbine housing)



3 x Retaining Ring / Circlip (Journal Bearing - Castellated)



  1 x Retaining Ring / Circlip (Oil Deflector)



1 x Retaining Ring / Circlip (seal plate)



1 x Retaining Ring / Circlip (Turbine end)



1 x Piston Ring (Comp.)



1 x Piston Ring (Turbine)



1 x Locknut / shaft nut (L/H)



1 x O-Ring (Seal Plate)



1 x O-Ring (T2 C /Cover 73mm)



1 x O-Ring (T25 C/Cover 82mm)



1 x Seal plate Assy (Dynamic seal kit )



1 x Thrust spacer



2 x Clamp Plate (Turbine)





Manufacture



- KAMAK DYNAMICS USA



Quantity



- 1 set



Note





- What you see is what you will get.



- Instruction will be emailed to those who request it.
