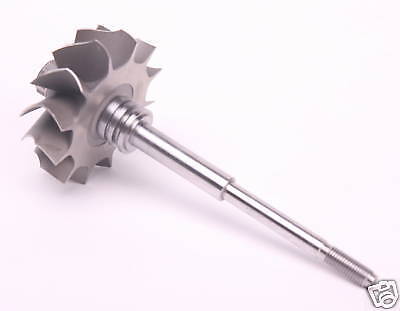

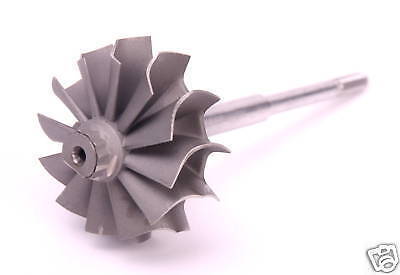

Turbine Wheel TRUSTs TD04H TD04HL 15G 16T 18T 19T / 12 Blade

Turbine Wheel TRUSTs TD04H TD04HL 15G 16T 18T 19T / 12 Blade

Regular price $109.00 USD
Regular price Sale price $109.00 USD
Sale Sold out
Shipping calculated at checkout.

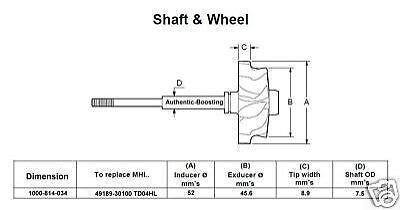

Dimension
- Inducer: 52mm
- Exducer: 44.2 mm
- Tip: 8.9 mm / 0.35 inch
- Turbine Shaft OD: 7.5mm / 0.29 inch
- No. of Blades : 12

Application
- VOLVO 850 / S70 Turbo: 49189-01400, 49189-01401, 49189-01410, 49189-01420, 49189-01430, 49189-01360, 49189-01300, 49189-01301, 49189-01310, 49189-01320, 49189-01330, 49189-01335, 49189-01350, 49189-01355, 49189-01450, 49189-01455, 49189-05010, 49189-05101,49189-05111, 49189-01355, 49189-05000, 49189-05100, 49189-05400, 49189-05401, 49189-05410, 49189-05411…
- Mitsubishi 4G63T DSM AUTO / RVR : 49189-02500, 49189-04100, 49189-04200, 49189-04300
- MWM 6.07T : 49189-03200, 49189-03201, 49189-03210
- SAAB 9.3 / 9.5 / 9000 / 9000 AERO B235R B234R : 49189-01600, 49189-00170, 49189-01800
- JCB / ISUZU 4BD1T : 49189-00501, 49189-00511, 49189-00520, 49189-00530,  49189-00540, 49189-00550
- KATO 4B31T: 49189-00800
- KUBOTA: A47GT: 49189-00900
- Greddy/TRUST : TD04HL-13G, TD04HL-15G, TD04HL-16T, TD04HL-19T turbo
- GM OPEL / SAAB / Cadillac SRX 2.8L Turbo: 49389-01700.

Be Careful
- All GREDDY/TRUST’s “TD04H” turbo is “TD04HL” turbo with this turbine wheel.

Quantity
- 1 pcs

Wheel Material
- Inconel 718 for performance ( Not 713 Normal Low Inconel )

Balance
- Balanced on Schenck / Ready to use
