Turbo Repair Kit Genuine OEM Mitsubishi MHI TD08 TD08H T88 T78 T88H

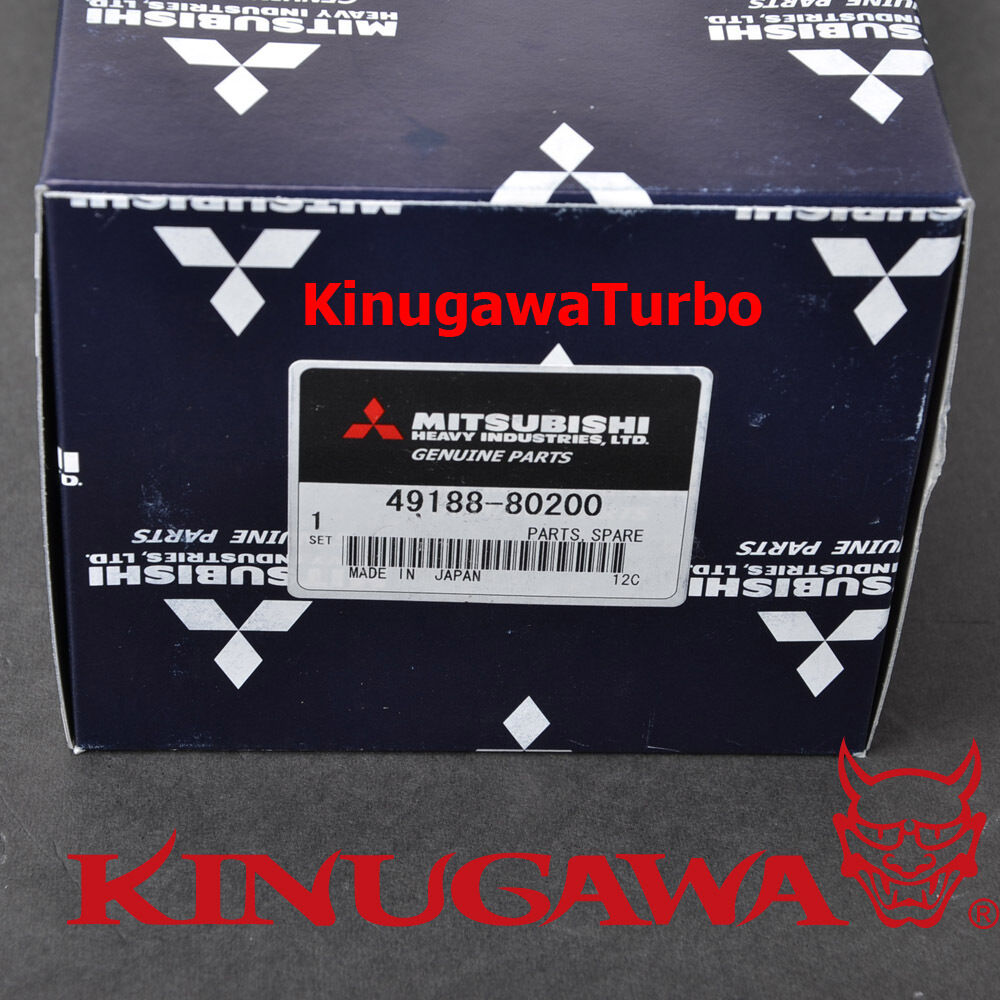

MHI P/N
49188-80200

Application
- Mitsubishi TD08 / TD08H Turbo, 6D22T 49174-01142, 49174-01140 / 8DC9
- GREDDY / TRUST T88, T88H
-HYUNDAI D6AZ / D8AF 49174-01200, 49174-05565, 49174-05566, 49174-05592, 49174-06163
- Kobelco & CATO: 49174 00560

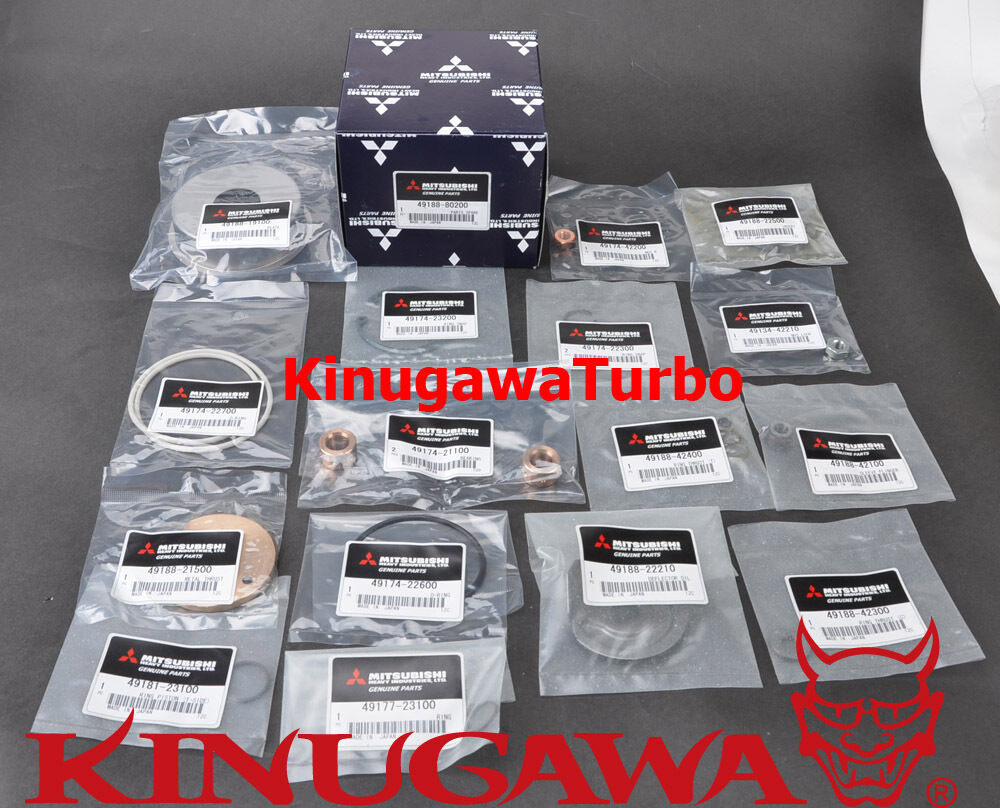

Detail
-49177-23100 : 1 x Ring
-49177-23200 : 1 x Snap Ring
-49188-22500: 1 x Insert (Flat Back)
-49188-42100 : 1 x Thrust sheeve
-49188-42300 : 1 x Thrust Ring (O)
-49188-42400 : 1 x Thrust Collar (T)
-49181-23100 : Piston Ring (Turbine side)
-49174-22700 : 1 x O-Ring (Cover)
-49174-22600 : 1 x O-Ring (Insert)
-49188-21100 : 2 x Journal Bearing
-49188-21500 : 1 x Thrust Bearing
-49174-42200 : 1 x Nut (R)
-49188-22210 : 1 x Oil Deflector
-49188-19100 : 1 x heat Shield

Manufacture
- Mitsubishi Heavy Industry

Quantity
- 1 x Complete Kit

Note
- What you see is what you will get.
- Instruction will be emailed to those who request it.
