Turbo Repair Kit Mitsubishi 4D31T 4D34T TD05 10A 12B

Application
TD05 / TD06 10A, 12A, 14A, 14B, 14C, 17A, 17C, 19C Turbo

Application Detail
- 4G63T DSM 1G TD05H-14B 49178-01400, 49178-01410, 49178-01010, 49178-01030/ TD05H-12B 49178-00600
- Starion/Conquest: G54/2.6L TD05-12A 49178-01600, 49178-01700, 49178-01710, 49178-01740
- TYPHOON / GMC TD06-17C 49179-04000, 49179-04100.
- Mitsubishi : 4D31T TD05-10A 49179-00500, 49179-00510, 49178-00520,
49178-00530, 49178-00540, 49178-00550, TD05H-12B 49178-00590, 49178-00595
4D34T : TD05-12B 49178-00210, 49178-00300,
- VOLVO : 740 TD05H-12B 49178-03000, 49178-03010
- KUBOTA
- HYUNDAI : 49178-03530
- Alfa Romeo: 49178-07200
- CATERPILLAR: S6D14 49179-00100, 49179-00110, 49179-00451, 49179-00460

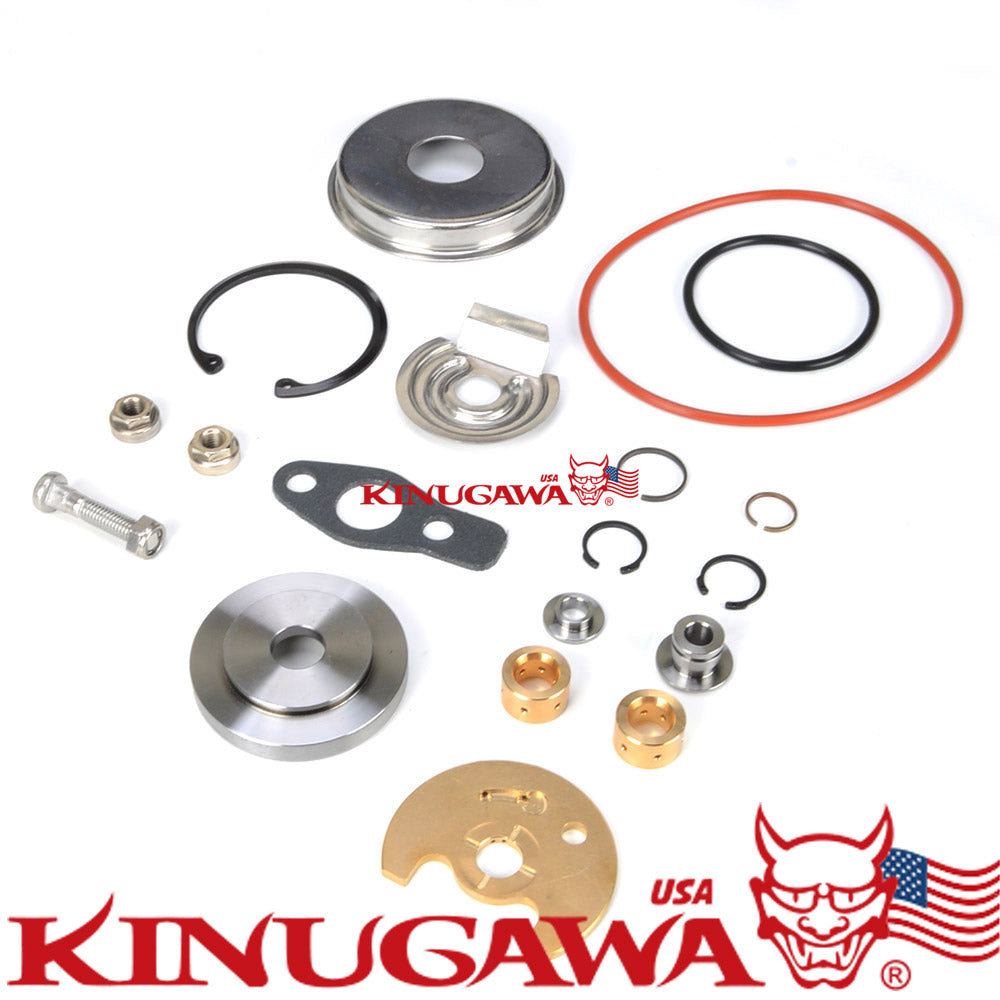

Detail
- 1 x O-Ring (C/Hsg-B/Hsg)
- 1 x O-Ring (Insert)
- 2 x Journal Bearing (Std Size)
- 2 x Snap Ring (Journal Bearing)
- 1 x Snap Ring (Insert)
- 1 x Thrust Bearing (Performance two hole Type)
- 1 x Thrust Ring (Performance Type)
- 1 x Thrust Flinger(Performance Type)

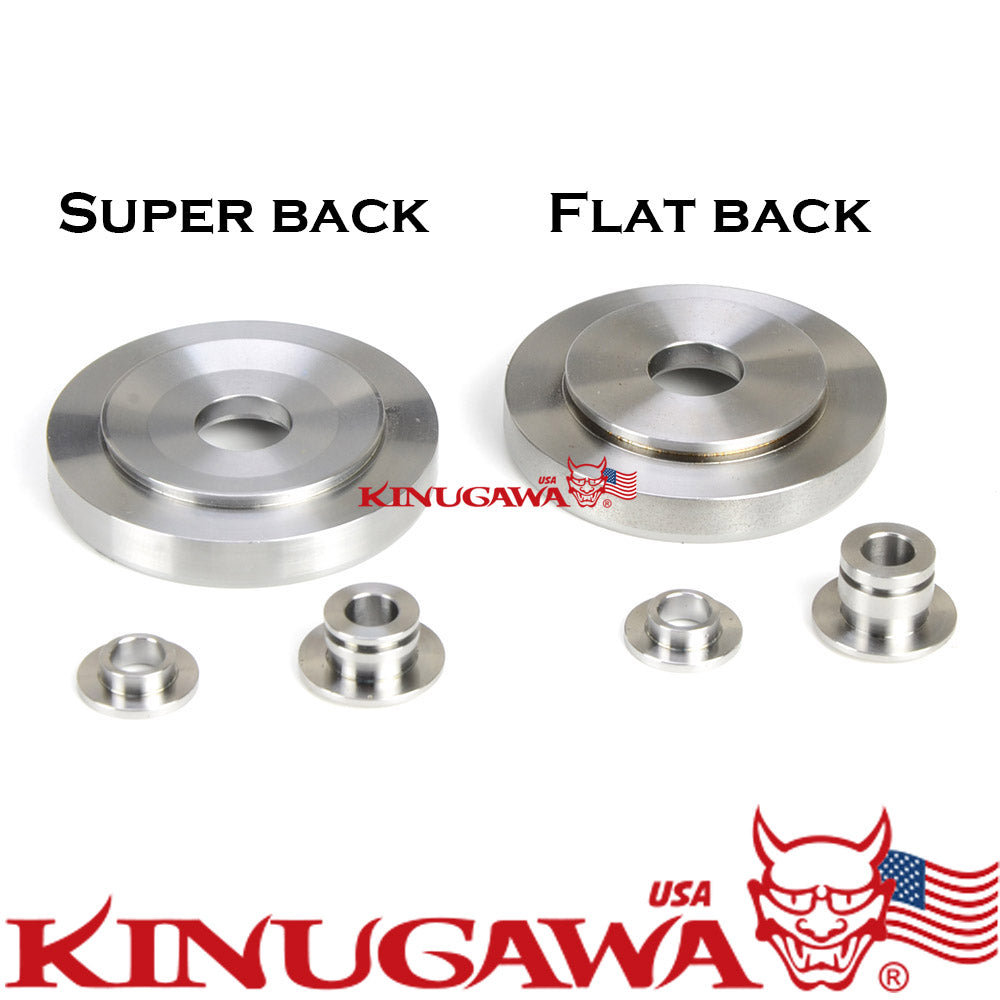

- 1 x Insert (Flat Back)
- 1 x Oil Deflector
- 1 x Piston Ring (Comp)
- 1 x Piston Ring (Turb)
- 1 x Shaft Nut (Right)
- 1 x Shaft nut (Left)
- 1 x Gasket (Oil Return)

Quantity
- 1 set

Note
- What you see is what you will get.
- Instruction will be emailed to those who request it.
