Turbo Repair Kit Renault 5 GT Garrett TBO235 465367-1

Product Info:

Item Name

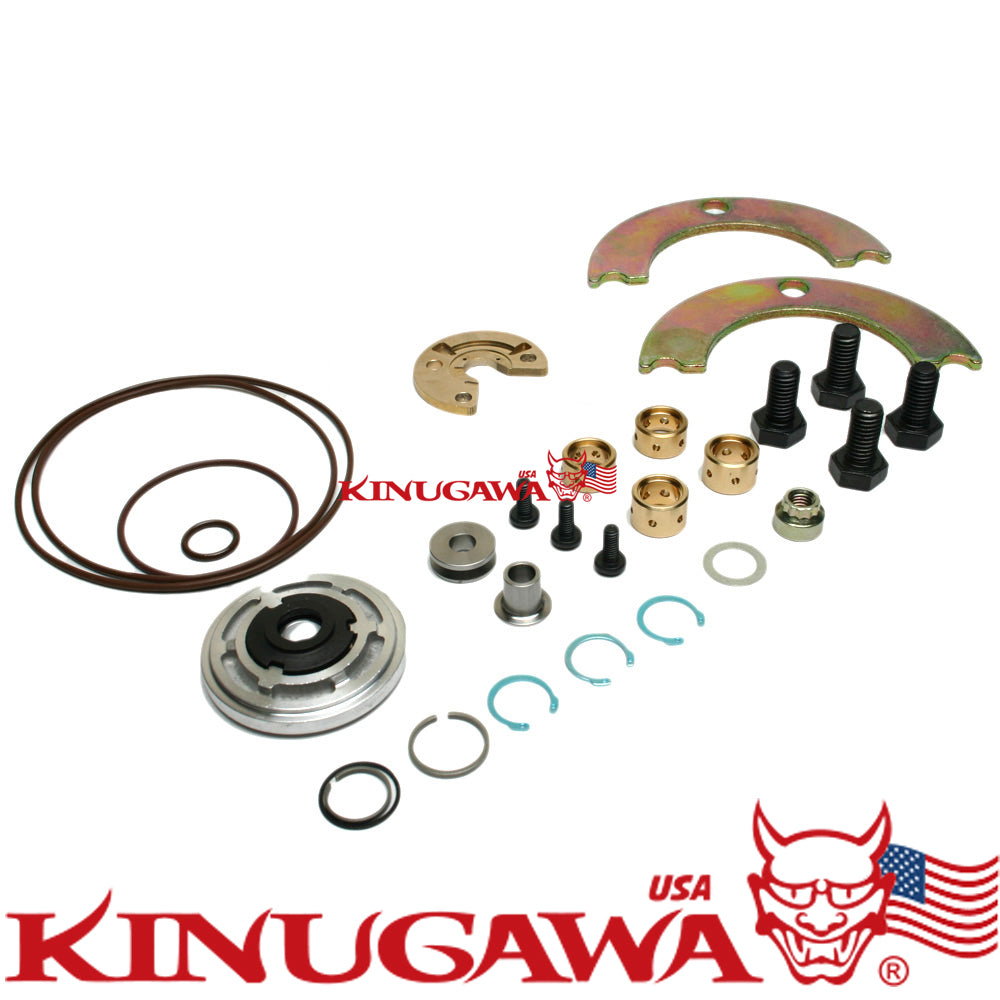

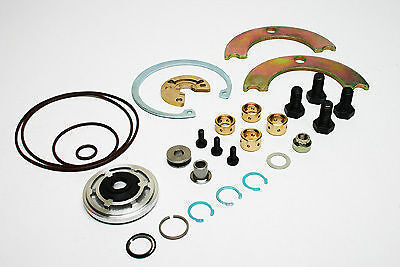

Garrett T2 / T25 / T28 / TB02 / TB25 / TB28 Turbo Rebuild Kit

( Carbon Seal Type )

Item No.

1100-730-100 /411-03076-002

Application

Garrett T2 / T25 / T28 / TB02 / TB25 / TB28 turbo ( Replace 709342-0001)

Kit Detail

2 x Journal bearing (short / STD / 7.67mm)

2 x Journal bearing (long / STD / 9.37mm)

3 x Socket head / T/brg Screw (encapsulated T-Torx)

1 x Thrust bearing (270° / 3 hole fix)

4 x Bolt (bearing housing to turbine housing)

3 x Retaining ring / circlip (journal bearing - castellated)

1 x Retaining ring / circlip (oil deflector)

1 x Retaining ring / circlip (seal plate)

1 x Retaining ring / circlip (turbine end)

1 x Piston ring (comp.)

1 x Piston ring (turbine)

1 x Locknut / shaft nut (L/H)

1 x O-Ring (seal plate)

1 x O-Ring (T2 C /cover 73mm)

1 x O-Ring (T25 C/cover 82mm)

1 x Seal plate Assy (carbon seal kit )

1 x Thrust collar

1 x Thrust spacer

2 x Clamp plate (turbine)

Manufacture

- KAMAK DYNAMICS USA

Quantity

- 1 set

Note

- What you see is what you will get.

- Instructions available on request
